Classes in VB.NET

In this tutorial I'm going to learn you how to create your own classes, both from scratch and with another class as the base.





A Basic Class



First we just create a class, you can write it at the bottom in the other codes or just add a new class item for it.

Code:
Public Class CTutorialClass

End Class
My class is here called CTutorialClass.





Now we add some content in the class:


Code:
Public Class CTutorialClass

    Private Message As String = "Hello CodeCall!"

    Public Sub PrintMessage()
        MessageBox.Show(Message)
    End Sub

End Class
I just declared a private string. This string can only be accessed from the class itself. And then I also added a public sub called PrintMessage which just show the text in our string in a messagebox.



Now if we go back to our other section of code(the one we want to use the class in).

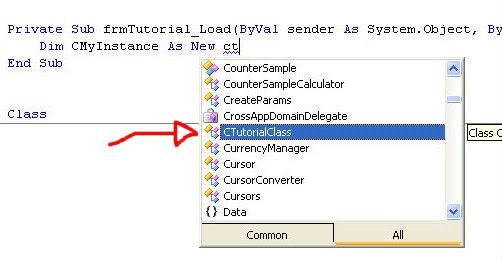

When we starts writing our class is in the list of proposed items:





We continue to write to get this:


Code:
    Private Sub frmTutorial_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Dim CMyInstance As New CTutorialClass
        CMyInstance.PrintMessage()
    End Sub

This will create a new instance of our class and then call the PrintMessage sub which will show a messagebox with our message. It will look like this:




This was just a simple class and isn't useful in any way, but more advanced classes will be.







A Class with properties


We're going to continue with our last class, but now we'll add a property.

Code:
Public Class CTutorialClass

    Private Message As String = "Hello CodeCall!"
    Private Caption As String

    Public Sub PrintMessage()
        MessageBox.Show(Message, Caption)
    End Sub

    Public Property Title() As String
        Get
            Return Caption
        End Get
        Set(ByVal Title As String)
            Caption = Title
        End Set
    End Property
End Class
If we change this a little:

Code:
        Dim CMyInstance As New CTutorialClass
        CMyInstance.PrintMessage()
to this:

Code:
        Dim CMyInstance As New CTutorialClass
        CMyInstance.Title = "CC"
        CMyInstance.PrintMessage()
We'll set the Title to CC. This will give our messagebox the caption "CC".

We can also use it the other way to Get the caption:
Code:
        Dim Caption as String = CMyInstance.Title

Observe that when we get/set our property we doesn't only need to return/set a variable straight of. We can do like this:

Code:
    Public Property Title() As String
        Get
            Return Caption & "!!!"
        End Get
        Set(ByVal Title As String)
            Caption = Title
            If Title = "CC" Then
                MessageBox.Show("Nice Caption!!!")
            End If
        End Set
    End Property
If you only want the user to be able to get the property's value or only allow the user to change it you can create a readonly property or a writeonly property like this:

Code:
    Public ReadOnly Property Title() As String
        Get
            Return Caption & "!!!"
        End Get
    End Property
Code:
    Public WriteOnly Property Title() As String
        Set(ByVal Title As String)
            Caption = Title
            If Title = "CC" Then
                MessageBox.Show("Nice Caption!!!")
            End If
        End Set
    End Property

After adding a property to the class it's proposed in the list like this:









More alternatives when calling subs

When calling subs/functions of built in classes you often have many alternatives of which variables to use:




This is easily done in the same way you're making normal subs with different alternatives. Don't worry I will explain how:



We'll add 2 subs with the same name:

Code:
Public Class CTutorialClass

    Public Sub moveMouse(ByVal P As Point)
        Cursor.Position = P
    End Sub

    Public Sub moveMouse(ByVal X As Integer, ByVal Y As Integer)
        Cursor.Position = New Point(X, Y)
    End Sub

End Class

But one has the variable Point while the other one has 2 integer variables. Remember they must have different or it won't work.

So now the user have the option to enter the position he/she wants to move the mouse to(as this example shows) in either a point or in a X and an Y value .

Now it looks like this if we try to call our sub:










Creating and using events


We add an event to our class and then a sub which only calls that event:

Code:
Public Class CTutorialClass

    Public Sub raiseOurEvent()
        RaiseEvent ourEvent(Me, New EventArgs())
    End Sub

    Public Event ourEvent(ByVal sender As Object, ByVal e As EventArgs)

End Class
So when we later will call the sub the program will raise the event, more to that soon.

Now we use this code to try our event:

Code:
    Private Sub frmTutorial_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Dim CMyInstance As New CTutorialClass
        AddHandler CMyInstance.ourEvent, AddressOf eventRaised

        CMyInstance.raiseOurEvent()

    End Sub

    Private Sub eventRaised(ByVal sender As Object, ByVal e As EventArgs)
        MessageBox.Show("Event Raised")
    End Sub

This will, when our program loads, create a new instance of our class. Then it will add a handler to eventRaised sub from our event.

Then we call our sub which will raise the event which will in its turn make the eventRaised sub to go off which will show the messagebox.








Build a class with another one as base


In this example I will create 2 classes, one which will be the base and the other one that uses the base class as its base.


Here's our base class:

Code:
Public Class CTutorialClassBase

    Public Variable1 As Integer
    Public Variable2 As String
    Public Variable3 As Char


    Public Function ReturnCC()
        Return "CC"
    End Function

End Class
Doesn't contains much actually, but it's just some examples after all.



And the other class:


Code:
Public Class CTutorialClass
    Inherits CTutorialClassBase

    Public Variable4 as Double
    Public Variable5 as Short

End Class

Now we have Inherited everything from our base class into our other class.
Now we can access the things from our base class from inside the other class:





Or from our instance of the other class:












Make your class easier to use


Now the main functions of the class is done but we want to make it easier to use, it's hard to know what everything does.


Here I've created a class to show how to add "instructions":


Code:
''' <summary>
''' A class with the purpose on helping people
''' </summary>
''' <remarks>This class is made for Vswe's tutorial about classes,
''' it doesn't really have any good functions.</remarks>
Public Class CTutorialClass

    ''' <summary>
    ''' The shoesize number.
    ''' </summary>
    ''' <remarks>Holding the double value of the shoe's size</remarks>
    Public ShoeSize As Double

    ''' <summary>
    ''' The walking speed, used to calculate the time of walks.
    ''' </summary>
    ''' <remarks>This constant is used to calculate the the time it takes to walk a certain amount of meters.
    ''' Use CalculateTime to calculate the time it takes.</remarks>
    Public Const WalkSpeed As Short = 7


    ''' <summary>
    ''' Calculate the time it takes to walk a special lenght
    ''' </summary>
    ''' <param name="meters">The amount of meters to walk</param>
    ''' <returns>Returns the time it takes in seconds</returns>
    ''' <remarks>Calculates the time it takes to walk by using the meter input and the walkingspeed constant</remarks>
    Public Function CalculateTime(ByVal meters As Integer)
        Dim Time As Integer
        'calculation goes here
        Return Time
    End Function

    ''' <summary>
    ''' Calculate the time it takes to walk a special lenght, also check if you got
    ''' any good shoes
    ''' </summary>
    ''' <param name="meters">The amount of meters to walk</param>
    ''' <param name="Shoes">The biggest shoesize avalible</param>
    ''' <returns>Returns the time it takes in seconds</returns>
    ''' <remarks>Calculates the time it takes to walk by using the meter input and the walkingspeed constant</remarks>
    Public Function CalculateTime(ByVal meters As Integer, ByVal Shoes As Double)
        Dim Time As Integer
        If ShoeSize > Shoes Then
            MessageBox.Show("You don't have any shoes that fits")
        Else
            'calculation goes here
        End If
        Return Time
    End Function

End Class



The four I used, It exists a lot more:
  • Summery - A short info about the "thing"
  • Remarks - A longer description
  • Param - Info about a parameter, here you need to write the name of it
  • Return - Info about the returning value.


Here I show some examples on how it will look like with these informations:



























This was the tutorial Hope you have learned anything because it took me 3 hours to write.

Have a good time Codeing
/Vswe
__________________
My CC Blog | My Website |Periodic table | Pm me | Ask me
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiFurl this Post!
Reply With Quote
  #2 (permalink)
Old 07-21-2009, 01:18 PM
Jordan's Avatar
Administrator

Join Date: Nov 2005
Location: Hendersonville, NC
Posts: 24,556
Jordan is a name known to allJordan is a name known to allJordan is a name known to allJordan is a name known to allJordan is a name known to allJordan is a name known to all
Send a message via ICQ to Jordan Send a message via AIM to Jordan Send a message via MSN to Jordan Send a message via Yahoo to Jordan
Re: Classes in VB.NET

Very cool tutorial! Classes are very important in VB! I like the last section where you showed proper function documentation. Nice work! +rep
